Product Detail

Model No.: AM-DF01

Production Capacity: 1000

Delivery Date: 30days

agricultural diaphragm pump: membrane pumps

Means of Transport: Ocean,Land,Air

Packing: 1pcs/ctn

Brand Name: agros

Diaphragm Pump ,Diaphragm Pumps ,Diaphragmatic Pump Water Pump ,Skid Diaphragm Engine
Diaphragm PUMP ,Septum Pump ,Italy Model boom sprayer copper

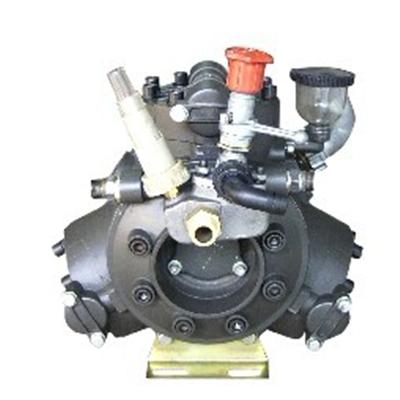

Suitable for tractor or trailer mounted duster and sprayer applications. Parts in contact with liquid in anodised aluminium and resistant to corrosion. Internal manifolds.
Three membrane type. Quick inspection of suction-delivery valves. Discharge tap.

Main Technical Parameters

Type	Speed (rpm)	Flow (L/min)	Pressure (MPa)	Power		Dimension (mm)	Weight (kg)
Type	Speed (rpm)	Flow (L/min)	Pressure (MPa)	Motor (HP)	Engine (HP)	Dimension (mm)	Weight (kg)
MB20/2.0	600	16	2.0	1.7	2.3	245×215×250	5
MB30/2.5	600	26	2.5	2.5	4	260×210×265	9
MB40/2.5	600	40	2.5	3.5	5	310×250×360	12
MB60/2.5	540	60	2.5	6	8	450×250×370	23
MB80/2.5	540	80	2.5	8	11	450×250×370	23
MB100/3.0	550	100	3.0	10	13	460×410×480	39
MB50/4.0	550	50	4.0	7	9	298×325×290	16
