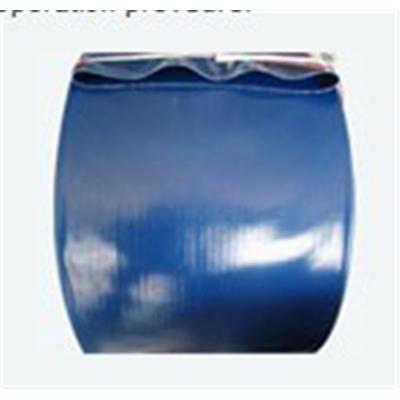

Water Tape Pvc Tape pump Water Band Soft Water Pipe tube

Payment Terms: T/T,L/C
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: AM-TP02
Production Capacity: 100000
Delivery Date: 30days
Brand Name: agros
Means of Transport: Ocean,Air
Packing: 50m/roll
Type: Others
materials: pvc

Plastic Water Tape ,Pvc Water Tspe ,Pump Soft Water Pipe Tape ,Agricultural Water Band ,Plastic Soft Tube ,Pvc Plastic-coating Soft Tube

Survey
· Hi-strength terylene yarn and qualified PVC synthesis materials.
· Light weight, good flexibility, bright color, smooth smearing layer.
· Flat roll and easy for take back, convenient for moving and non limitation for length.
· Capable for keeping the flexibility and elasticity under the low-temperature water.
· Anti-hi pressure, corrosion resistance and ageing resistance.
· Applied to the lines of the auxiliaries for agricultural tools against the drought, project, miming, environment protection, industry and so on, which is the most ideal liquid-transferred hi-pressure hose.
· Applicable operation temperature 10℃-60℃
The series DTG flexible tubes with a plastic coat we produced have 50 specifications and models.We divide the products into 3 models according to the working pressure , they are 0.2,0.3,0.4,each model can be further devided into 10 specifications according to the inner diameters , they are 25,30,40,50,65,76,100,125,and 200 mm. Other specifications of products also can be produced according to the special demands of users.
:1.Minimeter of the hose's internal diameter.
2.it means low pressured plastic-coated hose.
3.in times megapascal of operation prevsure.
TECHNICAL INDEX OF EACH SPECIFICATION&VARIETY
EPECIFICATIONS&TYPENOMINAL INTERNEL DIAMETER
(mm)
OPERATION PRESSURE
(MPa)
DRMOLITION
(MPa)
FIXED LENGTH
(M)
25DTG-02
25±1.0
0.2
0.6
20±0.2
50±0.2
100±0.5
25DTG-03
25±1.0
0.3
0.9
25DTG-04
25±1.0
0.4
1.2
25DTG-05
25±1.0
0.5
1.5
25DTG-06
25±1.0
0.6
1.8
25DTG-08
25±1.0
0.8
2.4
25DTG-10
25±1.0
1.0
3.0
30DTG-02
30±1.2
0.2
0.6
30DTG-03
30±1.2
0.3
0.9
30DTG-04
30±1.2
0.4
1.2
30DTG-05
30±1.2
0.5
1.5
30DTG-06
30±1.2
0.6
1.8
30DTG-08
30±1.2
0.8
2.4
30DTG-10
30±1.2
1.0
3.0
40DTG-02
40±1.5
0.2
0.6
40DTG-03
40±1.5
0.3
0.9
40DTG-04
40±1.5
0.4
1.2
40DTG-05
40±1.5
0.5
1.5
40DTG-06
40±1.5
0.6
1.8
40DTG-08
40±1.5
0.8
2.4
40DTG-10
40±1.5
1.0
3.0
50DTG-02
50±2.0
0.2
0.6
50DTG-03
50±2.0
0.3
0.9
50DTG-04
50±2.0
0.4
1.2
50DTG-05
50±2.0
0.5
1.5
50DTG-06
50±2.0
0.6
1.8
50DTG-08
50±2.0
0.8
2.4
50DTG-10
50±2.0
1.0
3.0
65DTG-02
65±2.3
0.2
0.6
65DTG-03
65±2.3
0.3
0.9
65DTG-04
65±2.3
0.4
1.2
65DTG-05
65±2.3
0.5
1.5
65DTG-06
65±2.3
0.6
1.8
65DTG-08
65±2.3
0.8
2.4
65DTG-10
65±2.3
1.0
3.0
76DTG-02
76±2.3
0.2
0.6
76DTG-03
76±2.3
0.3
0.9
76DTG-04
76±2.3
0.4
1.2
76DTG-05
76±2.3
0.5
1.5
76DTG-06
76±2.3
0.6
1.8
76DTG-08
76±2.3
0.8
2.4
76DTG-10
76±2.3
1.0
3.0
100DTG-02
100±2.5
0.2
0.6
100DTG-03
100±2.5
0.3
0.9
100DTG-04
100±2.5
0.4
1.2
100DTG-05
100±2.5
0.5
1.5
100DTG-06
100±2.5
0.6
1.8
100DTG-08
100±2.5
0.8
2.4
100DTG-10
100±2.5
1.0
3.0
125DTG-02
125±2.5
0.2
0.6
125DTG-03
125±2.5
0.3
0.9
125DTG-04
125±2.5
0.4
1.2
125DTG-05
125±2.5
0.5
1.5
125DTG-06
125±2.5
0.6
1.8
125DTG-08
125±2.5
0.8
2.4
150DTG-02
150±2.5
0.2
0.6
150DTG-03
150±2.5
0.3
0.9
150DTG-04
150±2.5
0.4
1.2
150DTG-05
150±2.5
0.5
1.5
150DTG-06
150±2.5
0.6
1.8
150DTG-08
150±2.5
0.8
2.4
200DTG-02
200±2.5
0.2
0.6
200DTG-03
200±2.5
0.3
0.9
200DTG-04
200±2.5
0.4
1.2
200DTG-05
200±2.5
0.5
1.5
200DTG-06
200±2.5
0.6
1.8
200DTG-08
200±2.5
0.8
2.4
250DTG-02
250±2.5
0.2
0.6
250DTG-03
250±2.5
0.3
0.9
250DTG-04
250±2.5
0.4
1.2
300DTG-02
300±2.5
0.2
0.6
300DTG-03
300±2.5
0.3
0.9
300DTG-04
300±2.5
0.4
1.2
